New! Secure command interface

Secure Communication mode - The latest CORIOmaster release provides a mode to encrypt all networked based communication through AES128 encryption to provide private communication in mission critical applications where network security and authentication is essential.
REST API / WebSocket - Based on industry standard schema, CORIOmaster supports REST API providing multi-user communication to device. Integrators can now subscribe to a growing range of events to provide real time feedback from CORIOmaster (such as: HDMI handshake, lost source, USB stick removed, etc). These events can be used by a control system to automatically monitor the performance and events of the videowall and respond accordingly.

New! Control

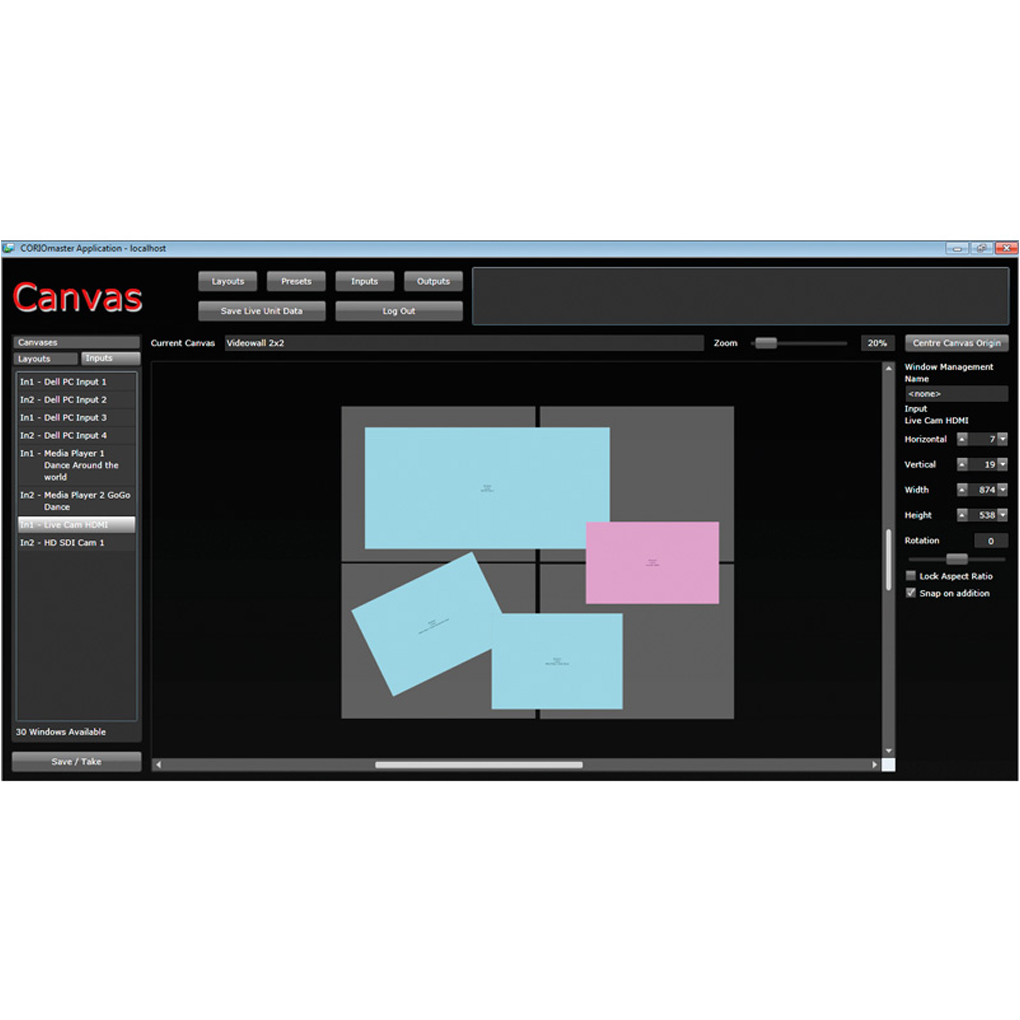

Multiple control points - Using our REST API up to four users can now control a single CORIOmaster chassis simultaneously making programming, control and fault finding a dream. In addition to control via CORIOgrapher,simultaneous control is possible using the CORIOmaster app (IOS and Android) and by a third-party control system using our real-time API interface. CORIOgrapher login profiles - System administrators can set different levels of control for up to four user profiles for Power User and User access control. Emergency cut/mute features - Cut individual canvasses to black and mute audio or cut all outputs to black and mute.

New! Audio management

Audio can be passed through the system from source to display. Alternatively, audio can be de-embedded, cross converted and re-embedded on another source for each of your four canvasses. Input and output volume control together with audio mute gives full control.

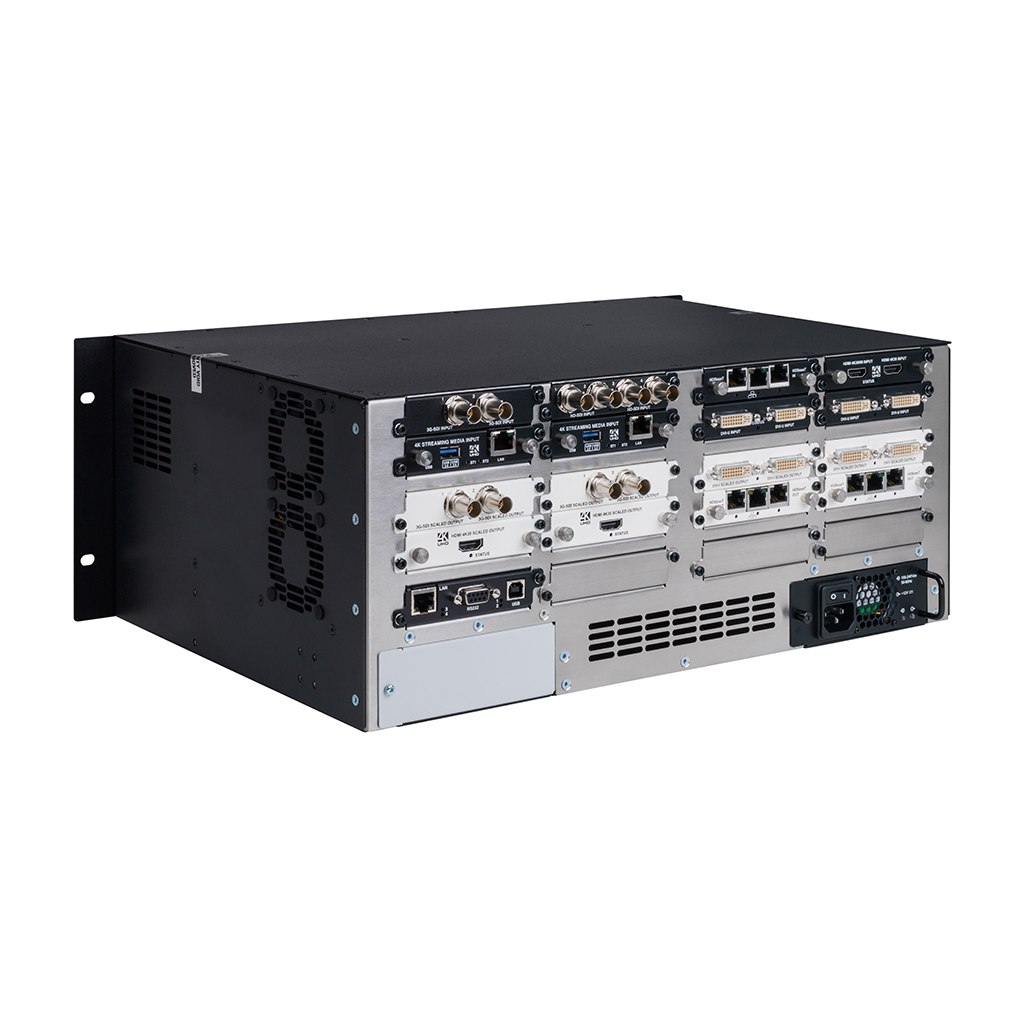

4K Input & Output Modules

The addition of 4K support consists of two modules; HDMI 2.0 4K60 input module and the HDMI 1.4 4K30 scaling output module.

CORIOmaster Transitions

Building of presets in the system now save one or any combination of the following window transition effects as part of a single preset
